Smart Lighting accessories

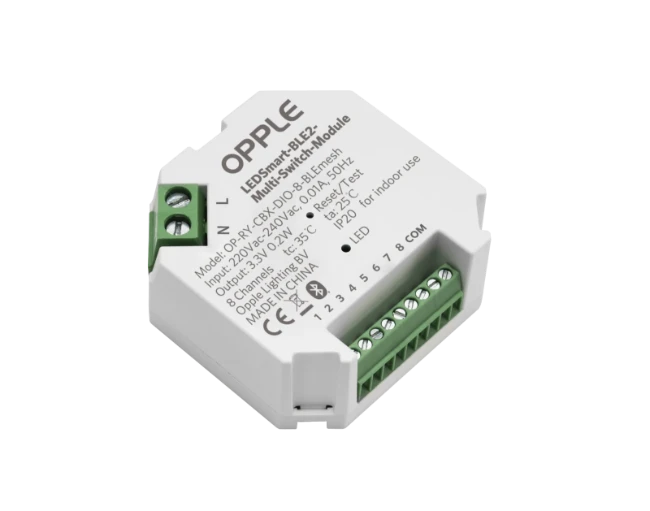

LEDSmart-BLE2-Multi-Switch-Module

Product Code
821017003400
  • Completely wireless operating switch for use in OPPLE Smart Lighting System
  • Compact input module for use in the OPPLE Smart Lighting System
  • Enables the use of conventional push-button switches to control Smart Luminaires
  • Turn Smart luminaires on/off, dim+/-, CCT+/- and activate scenes with a push of a button
  • Including temperature- and humidity sensors
  • Small enough to install behind the wall switch

Specifications

Electrical data

Power consumption 2 W

Capabilities

Communication Opple Bluetooth® Low Energy Mesh

Certificates and standards

Degree of protection (IP) IP20
Connection cable mains 12.5| mm²
Connection cable 0.5|1 mm²
Inputs (CH) 8
Height 18.3 mm
Application temperature 25°C
Operating temperature -20|45°C
EAN codeEU HS CodePackagingAmountSize (L x W x H)Weight
0693178300760094059200CT10.046 x 0.046 x 0.05 m0.07 KG
